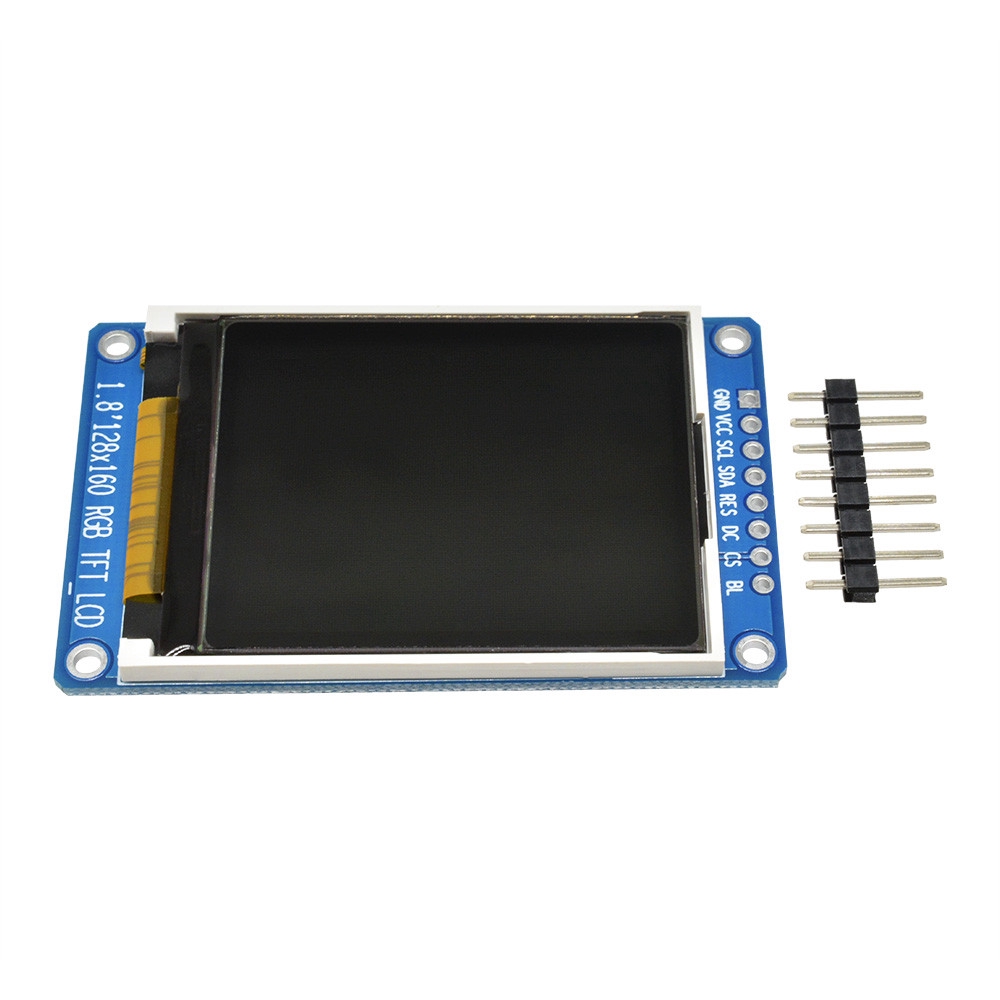

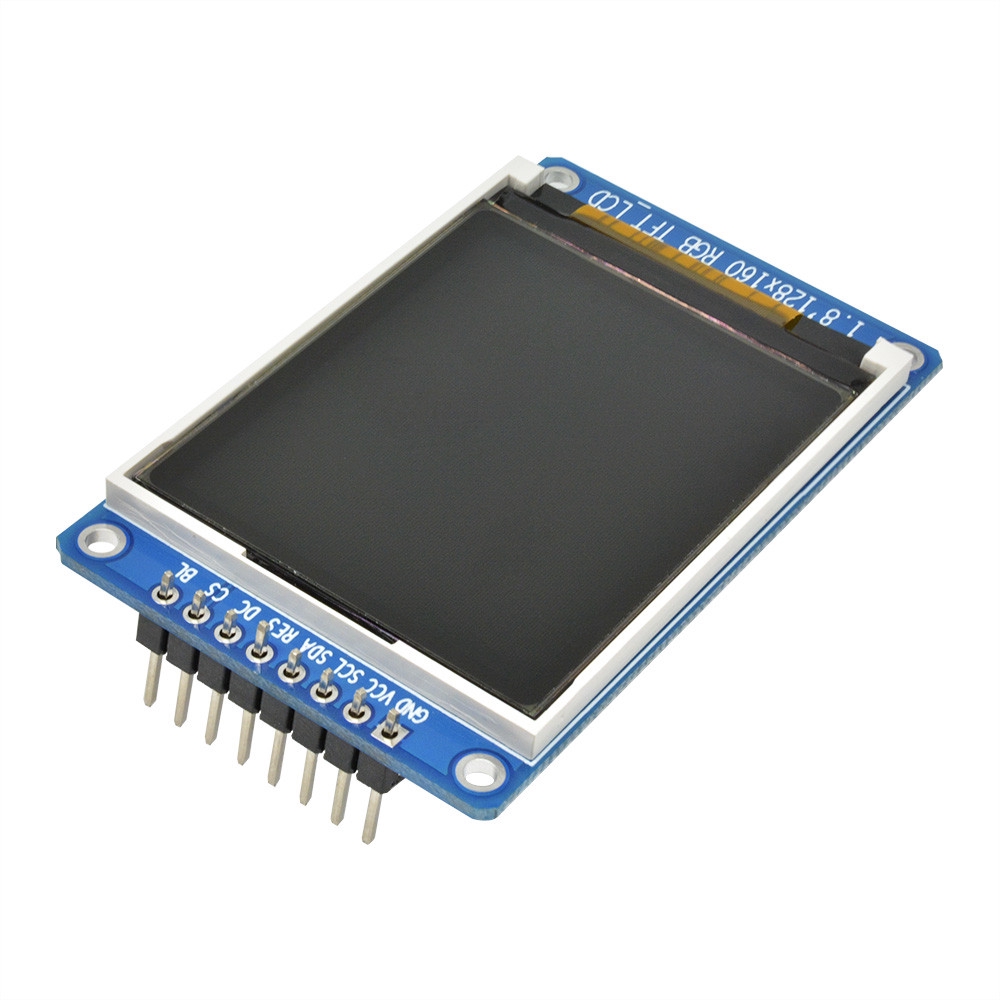

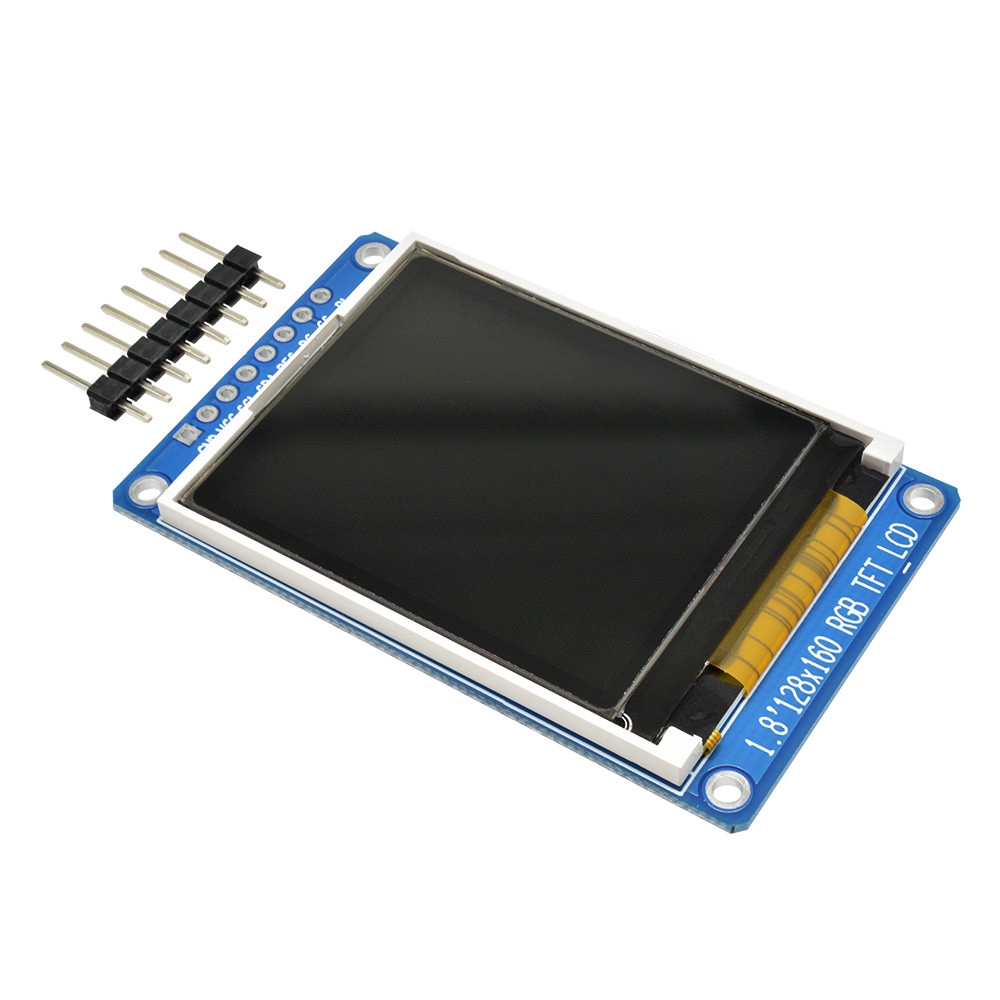

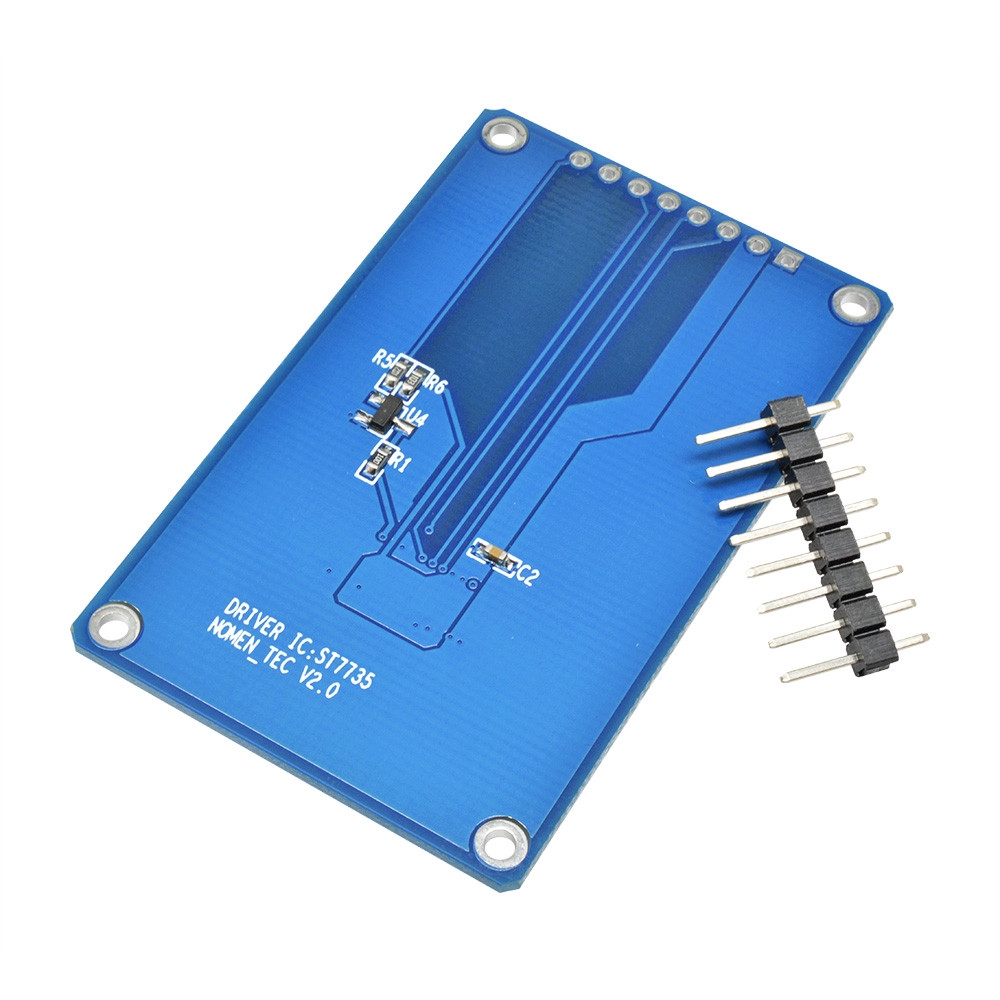

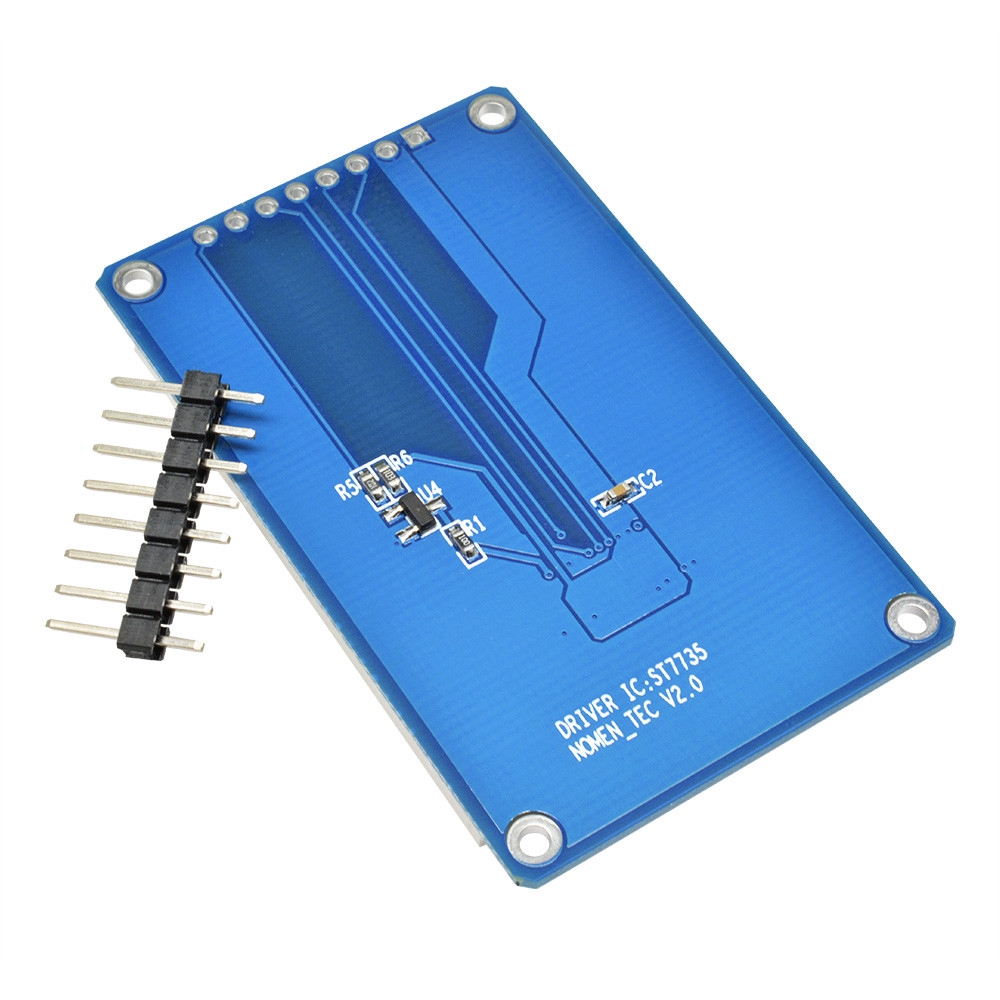

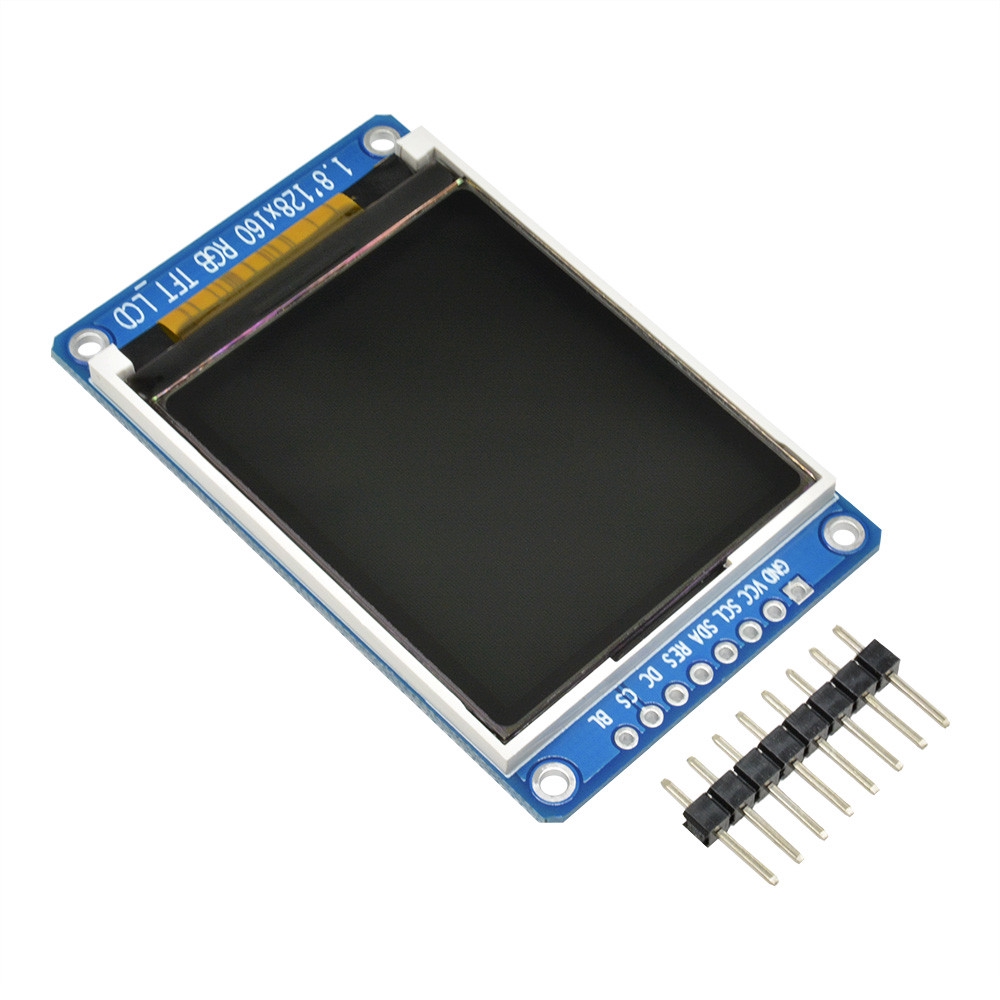

Description:

Resolution 128*RGB*128

PIN feet :8 pin (SPI serial interface)

PIN feet spacing:2.54mm

connection mode : Row needles

GND: Grounding power communication system

VCC: power supply

SDA: SPI DATA input

SCL : spi clock signal input

CS: spi chip select signal input

RST: reset

RS: command /data signal input selection

BLK : Backlight control signal inpu

Package Include:

1PC x New Arrival 1.8" Inch Full Color 128x160 128*160 SPI Full Color TFT LCD Display Module Board Replace OLED
